¶ 1.Consumables knotted
¶ Step 1: Sort out the consumables
Click the “Confirm” button, then arrange the consumables to make sure they are not knotted.
¶ Step 2: Reprint the model
After finishing the consumables, insert the consumables into the feed port, and then reprint the file.
¶ 2.The consumables are threaded out from inside the ACE Pro
¶ Step 1: Remove the consumables
If the consumables come out of the ACE Pro, please restart the printer or manually adjust the gears to remove the consumables.
¶ Step 2 Sort out the consumables

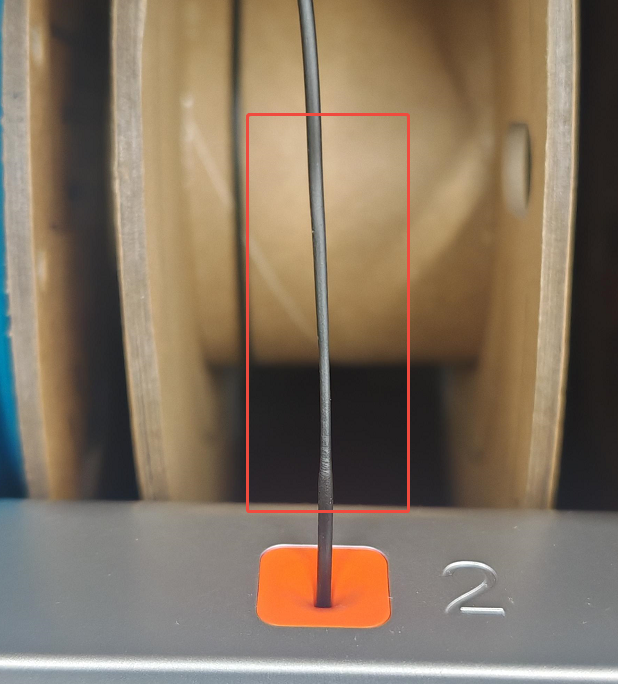

After pulling out the consumables, please cut off the bent part to ensure that the consumables are straight, and then reinsert the consumables.
Note: The consumables are pulled out of the ACE Pro because the consumables are bent, and the consumables should be kept straight when inserted.
¶ 3.The consumables are stuck in the gear
¶ Step 1: Restart ACE Pro
When the ACE Pro is restarted, the gear position will be zero, and there will be a gap to pull out the consumables.
¶ Step 2: Manually adjust the gear
1.If you still cannot remove the consumable after restarting ACE Pro, use the S2.5 Allen key to loosen the two screws securing the extruder cover.
2.Then manually turn the extruder gear and try to pull out the consumables while turning.
¶ 4.The consumables are stuck in the buffer mechanism
¶ Step 1: Restart ACE Pro
If the buffer mechanism does not retract properly during feeding, there may be consumables stuck in the buffer mechanism. Please restart ACE Pro and try to remove the consumables.
¶ Step 2: Remove the buffer mechanism
1.If the consumables still cannot be removed after restarting ACE Pro, please remove the buffer mechanism. First remove the blue clasp and remove the teflon tube.
2.Then use the S2.5 Allen key to loosen the two screws securing the cover of the buffer mechanism.
3.Please remove the buffer mechanism using the S2.0 Allen key, remove the rear cover and black connector of the buffer mechanism, and remove the consumables.
