¶ Wastes Disposal
The waste liquid, containing water, resin, and detergent, must be disposed of properly.
1. Allow the solvent stay still for over 10 hours so the residue could be precipitated and settled.
2. Drain off the top liquid and cure the residue in sunlight. Dispose of cured resin as solid waste.
¶ Recyclingofdetergent
The wash solvent may become muddy after prolonged use. Recycle it with the following treatment.
(Replace or dispose of the solvent after one month or 20 washes of 10.1-inch models to maintain its effectiveness.

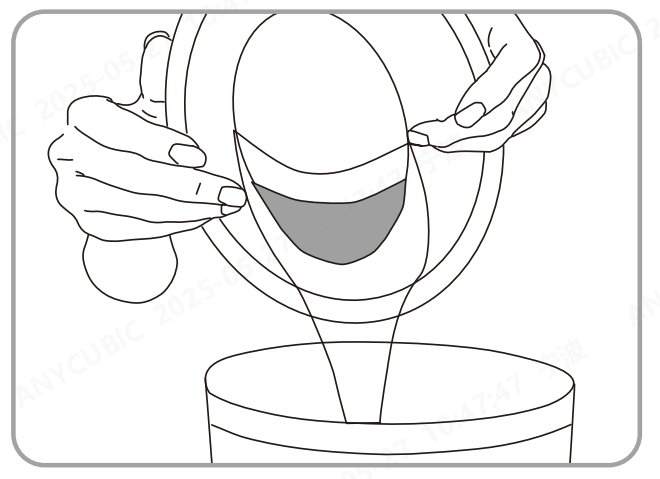

1. Transfer the solvent to another bucket and let it settle for over 10 hours to precipitate residue.Meanwhile,clean the detergent container with water.
2. Filter the solvent's top layerinto the detergent container and cap it.
3. Cure the residue in sunlight and then dispose of cured resin as solid waste
¶ Cleaning
Please turn offthe machine and unplug the power before cleaning.
¶ 1. Clean the rotor:
lfthe rotor rotates abnormally after long-term use, remove the rotor from drum to clean it.

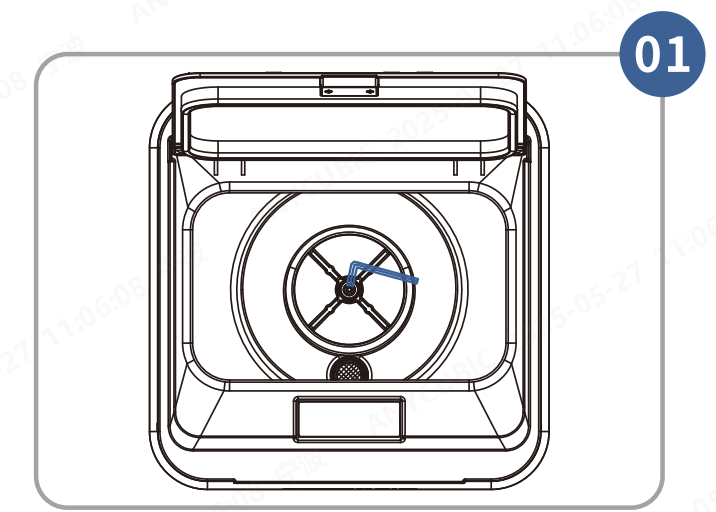

Reomove the rotor

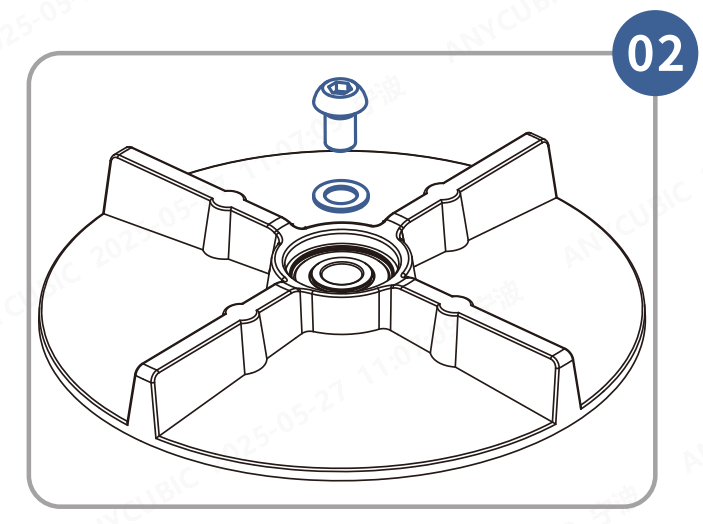

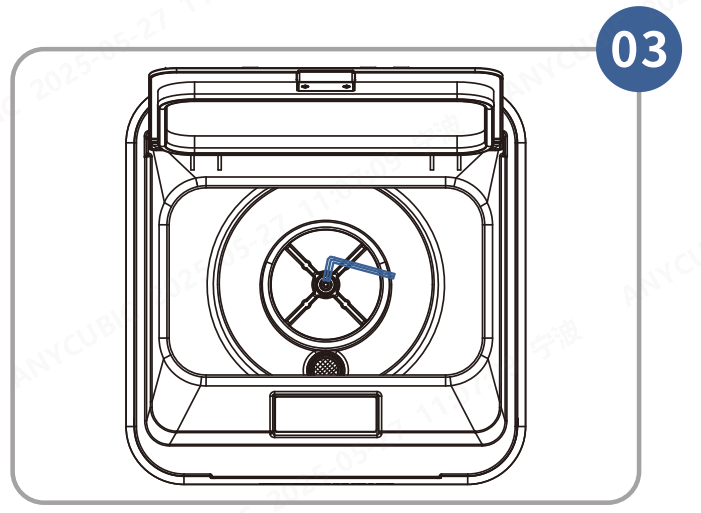

Clean the rotorand then reinstall it
¶ 2. Clean the strainers in the drum:
Clean the strainers regularly to prevent blockage from residue and debris.

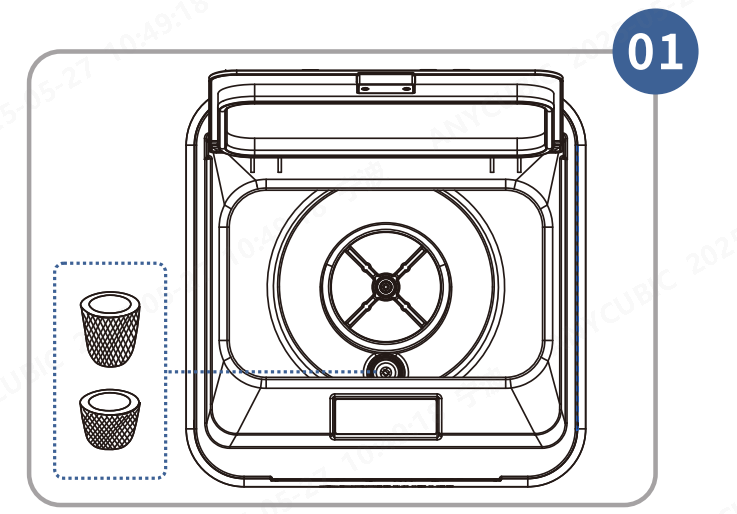

Take out the two strainers
Brush the strainers clean

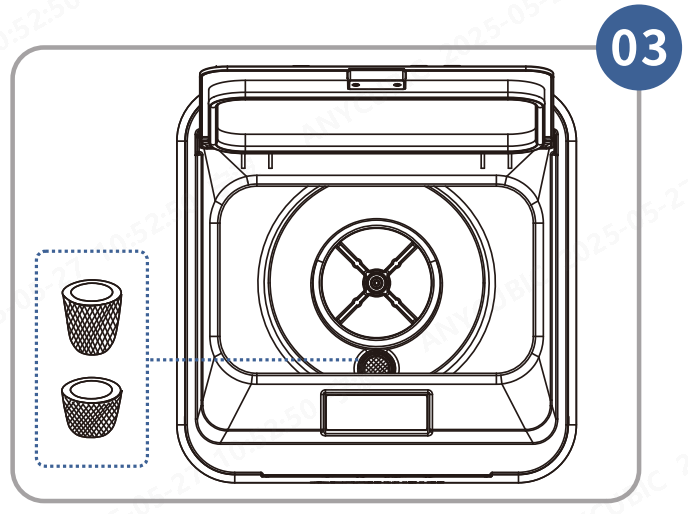

Reinstall the strainers
tip:Ensure the drum bottom is clear before removing the strainers. Residue entering the drain hole under the strainers may cause damage.
¶ 3. Clean the drum:
Pour water into the drum and clean it with a plastic scraper. Avoid using sharp objects.
After cleaning, plug in the power and turn on machine. ong press CANCEL button for 3 sec to drain the waste water.
¶ 4. Clean/replace the filter in the container:
Clean the filter regularly to prevent blockage from residue

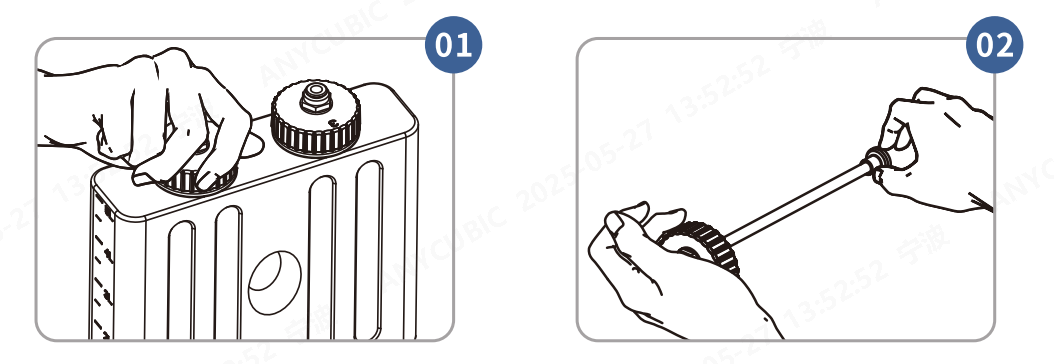

①Unscrew the cap and remove the filter.(shown using a detergent container)

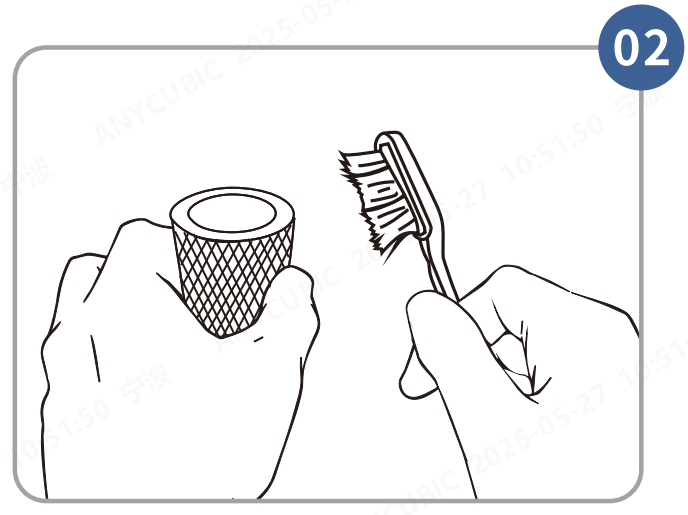

② Brush clean the filter. Replace it ifover 3 months old or difficult to clean.
③Reinstallthe filter.
¶ 5. Machine Cleaning:
Clean the machine before long-term storage. Clean parts as in steps 1-4 above, then use
wash mode to rinse the machine.
①Wash the detergentand water containers.
②Fill the detergentand water containers with water.
③ Close the machine door, select WAsH mode, and click START/PAUSE to begin. When the washingis
finished, Drain the liquid in the containers and the bucket.
④ After completion, let the drum dry and store the machine in a cool, dark place.
¶ Pipereplacement
Ifthe pipes are broken,please replace them timely.
1. Turn off the machine and unplug the power.
2. Take off the stopper first. Then, press the safety valve of the L-shaped connector and pull out the pipe

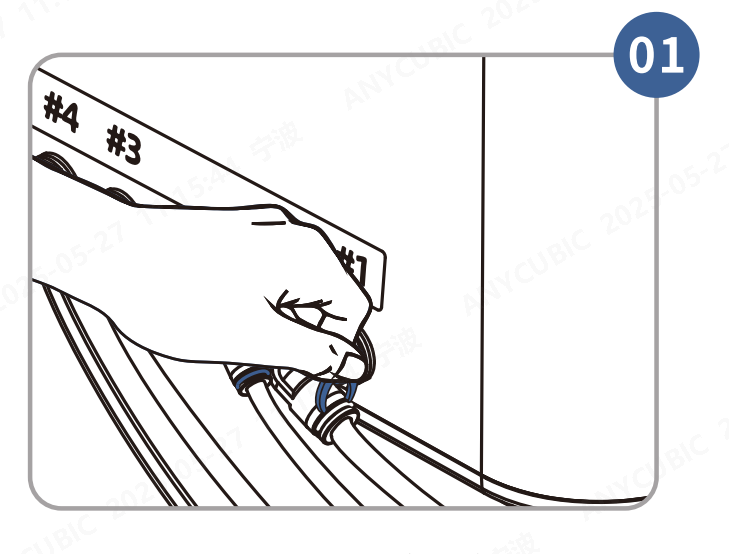

Remove the stopper

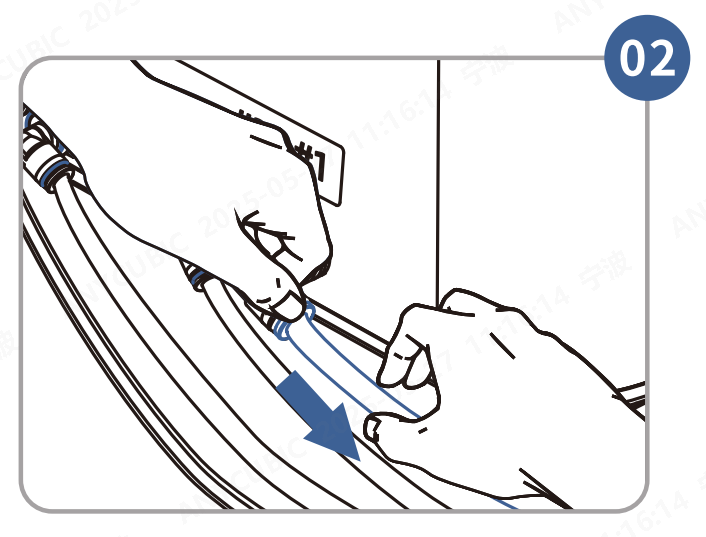

Press the safety valve and pull out the pipe
Press the safety valve and pullout the pipe

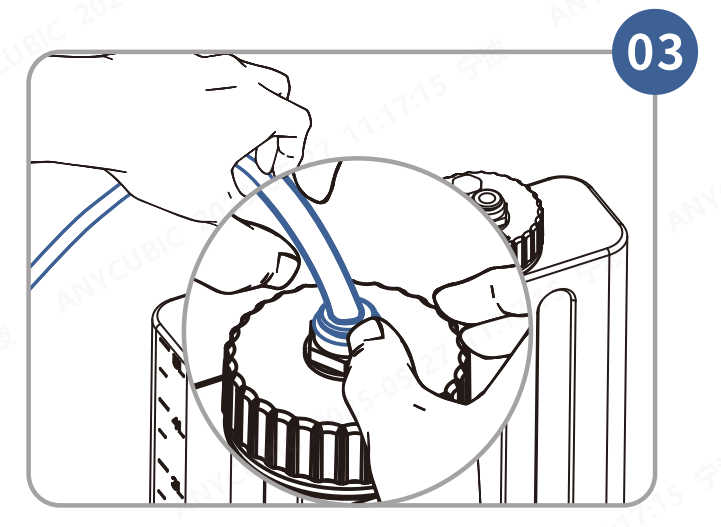

3. insert the new pipe into the L-shaped connector and check whether it is clamped. Then, install the stopper.
¶ Troubleshooting
¶ 1. Machine does not work.
● .Poor power connection. Reconnect the power cord. lf the issue persists, contact technical support.
¶
2. Error code “LLLL” is displayed, and the buzzer beeps periodically.
● Supply voltage is too low, Turn off the machine. check that the correct adapter and power cord are connected.Then, turn the machine back on.
¶ 3. Rotor inside the drum does not rotate.
● Foreign matter or precipitation is stuck in the rotor., First press START/PAUSE, then press CANCEL to stop, wait
for the machine to stop and turn it off, Remove the obstruction or clean the residue, and then restart.
¶ 4. Printed objects appear white after washing and curing.
● Alcohol concentration is lower than 95%; or the detergent is muddy after several use. Replace the detergent.
¶ 5.Machine does not work and reports error: E20
● Door is not closed.Close the door to resume operation.
¶ 6.Machine pauses during washing and reports error: E11
● No water or detergent. Refill the detergent/water container and verify the pipes #l and #2 are securely
connected.Then, press START/PAUSE to continue.
¶ 7.Machine pauses during washing and reports error: E12
● Drain hole is blocked. Clean the blockage in the strainers, close the door, and press START/PAUSE to continue.Machine is not level. Place it on a stable, level surface, and press START/PAUSE to continue.
¶ 8. The UV curing lamp is not on
● The wire is not plugged in properly or the lamp board material is damaged
Countermeasures: 1. Disassemble and check whether the wire terminal is plugged in properly 2. Replace the UV lamp board
¶ 9. The alcohol is getting less and less
● The alcohol will be sprayed in the first 5S to clean the barrel wall and drain it into the waste water bucket
● Every time the cleaning is done, the alcohol will hang on the barrel wall and the inner wall of the flip cover, which will eventually be drained into the waste water bucket
● When the liquid is cross-linked and the alcohol is drained, especially when the time is set to 42:30S, you will see alcohol discharged intermittently from the waste water pipe
¶ 10. The digital tube reports LLLL
● The power supply voltage is detected to be too low, the low voltage alarm value is 20V, and the correct adapter (24V) needs to be used
¶ 11. The digital tube reports HHHH
● The power supply voltage is detected to be too high, the high voltage alarm value is 28V, and the correct adapter (24V) needs to be used
¶ 12. The problem of cleaning with a platform
● Product definition, does not support cleaning with a platform, does not support cleaning with a platform for M3 MAX. The motor cannot move. If the customer must bring the platform for cleaning: Support 12-inch and below printing platforms with model cleaning. The weight should not exceed 3KG and the model should be placed upright, not tilted or inverted.
¶ 13. The working bucket is draining slowly.
●Possible reasons:
1. The working bucket filter is clogged with impurities. 2. The solenoid valve is clogged/abnormal. 3. The pump is clogged/abnormal.
●Countermeasures:
1. Clean the filter regularly and brush it clean with a brush. 2. Replace the solenoid valve. 3. Replace the pump
¶ 14. Water leaks from the bottom of the barrel
●1. Please turn off the power switch and unplug the power plug
2. Tilt the machine and pour out the water. After the water is poured out, remove the bottom cover and check whether the internal joints of the machine are loose/inserted in place, and whether the blue card slot is properly inserted
3. If the customer cannot solve the problem, please contact after-sales customer service
¶ 15. The display screen reports error E12 and the buzzer sounds for a long time
●Reason:
1. The water in the working barrel has not been drained, or the filter is blocked by solidified mixed waste liquid, resulting in poor water drainage. The liquid level sensor detects that there is water in the working barrel and alarms E12
2. The table is uneven, the machine is tilted, and the water in the working barrel cannot be drained cleanly. The liquid level sensor detects that there is water in the working barrel and alarms E12
3. The liquid level sensor is broken
4. The liquid level sensor is not assembled or is loose
5. The barrel is dirty, and there is a layer of dirt or bubbles on the inner wall of the barrel, which causes the liquid level sensor to misjudge the detection, or think that the dirty and bubbling things are liquids, and alarm E12
6. Foreign matter enters the waterway, causing the drain pump to be blocked, the flow rate to decrease, and the drainage cannot be completed within the specified time. The liquid level sensor detects that there is water in the working bucket, and alarms E12.
7. Foreign matter enters the waterway, causing the drain valve to be blocked, the flow rate to decrease, and the drainage cannot be completed within the specified time. The liquid level sensor detects that there is water in the working bucket, and alarms E12.
●Countermeasures:
1. Check whether the filter is blocked, clean the filter, if the filter is difficult to clean, it needs to be replaced.
2. Check whether the table is flat.
3. Replace the liquid level sensor.
4. Remove the bottom cover and reassemble the liquid level sensor.
5. Tell the customer to clean the working bucket regularly, and wipe the bottom of the bucket at the position of the liquid level sensor with a rag.
6. Replace the DC pump.
7. Replace the solenoid valve.
¶ 16. The filter is not blocked, and it is confirmed that there is no water in the working bucket, but the error E12 is reported.
●Reason:
1. The liquid level sensor is broken.
2. The liquid level sensor is not assembled properly or is loose.
3. Foreign matter enters the waterway, causing the drainage pump to be blocked, the flow rate to decrease, and the drainage cannot be completed within the specified time. The liquid level sensor detects that there is water in the working bucket and alarms E12.
4. Foreign matter enters the waterway, causing the drainage valve to be blocked, the flow rate to decrease, and the drainage cannot be completed within the specified time. The liquid level sensor detects that there is water in the working bucket and alarms E12.
●Countermeasures:
1. Replace the liquid level sensor
2. Remove the bottom cover and reassemble the liquid level sensor
3. Replace the DC pump
4. Replace the solenoid valve
¶ 17. The display screen reports error E20 and the buzzer sounds for a long time
●Reasons:
1. When the lid is open, the customer presses the "Start/Pause" button, and the magnetic induction sensor detects that the door is open. It cannot continue to work and reports E20.
2. During the spraying/curing process, the lid is forced to be opened, and the system recognizes that the lid is open and alarms E20.
3. The magnetic induction sensor is broken and cannot be detected.
●Countermeasures:
1. Close the lid before entering the cleaning and curing work.
2. During the spraying/curing process, the function panel shows the lock is in red state, do not force open the cover.
3. Replace the magnetic induction sensor
¶ 18. The display screen reports error E11, and the buzzer sounds for a long time
●Reason:
1. There is no water in the water bucket, and the liquid level sensor reports E11 when it detects that there is no water
2. There is no detergent in the detergent bucket, and the liquid level sensor reports E11 when it detects that there is no detergent
3. The 1234 pipe is not connected to the water bucket cover, and the liquid level sensor cannot detect the liquid entering and reports E11
4. The liquid level sensor is broken and cannot detect
5. The liquid level sensor is not assembled or is loose, and the detection is not sensitive
●Countermeasures:
1. Add water to the water bucket, click START/PAUSE, and continue working
2. Add detergent to the detergent bucket, click START/PAUSE, and continue working
3. Check whether the 1234 pipe inserted into the bucket cover is inserted in place
4. Replace the liquid level sensor
5. Remove the bottom cover and reassemble the liquid level sensor
