¶ Tips:
Replacing the protective cover requires power off.
¶ 1. Tools
Slotted screwdriver
¶ 2. Disassembly steps:
¶ Step 1: Disassemble the protective cover

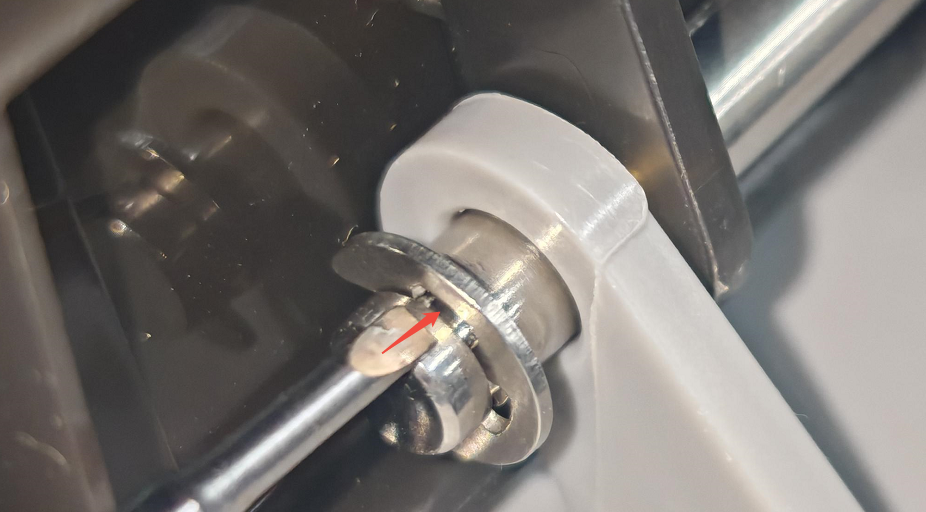

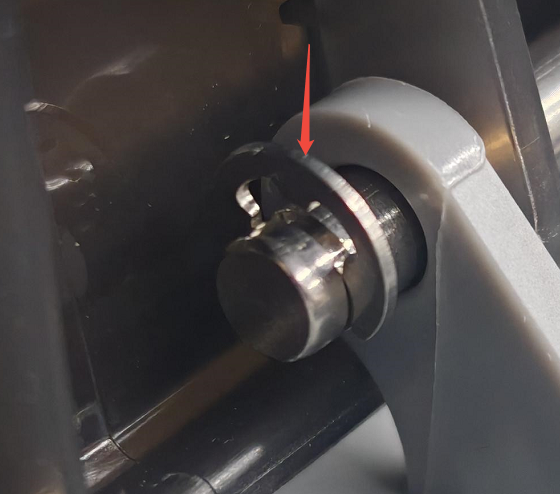

Use a slotted screwdriver to gently remove the buckles on both sides.
¶ Step 2: Remove the pins

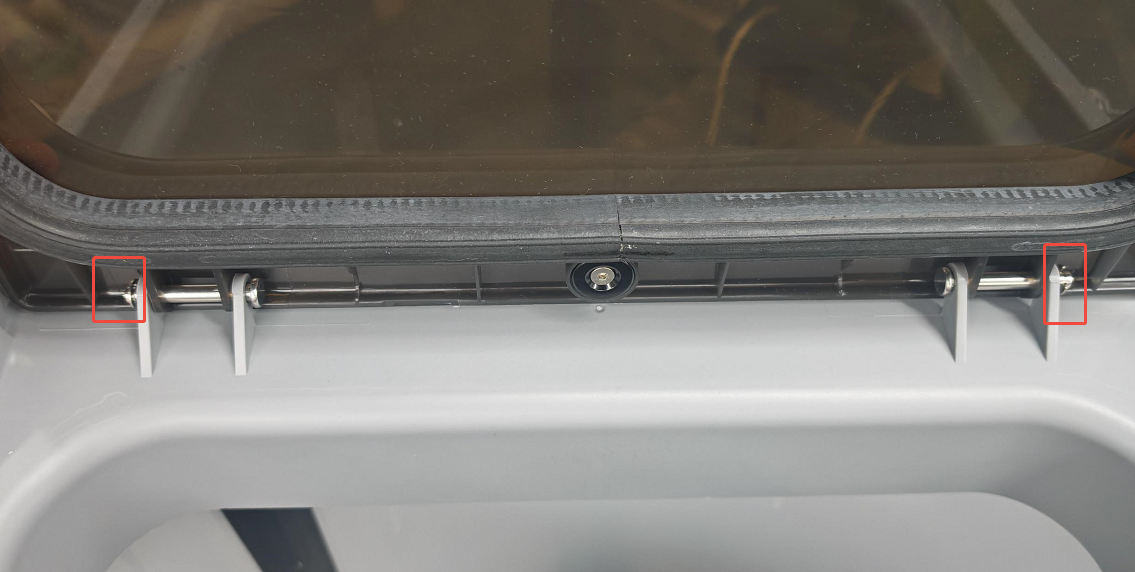

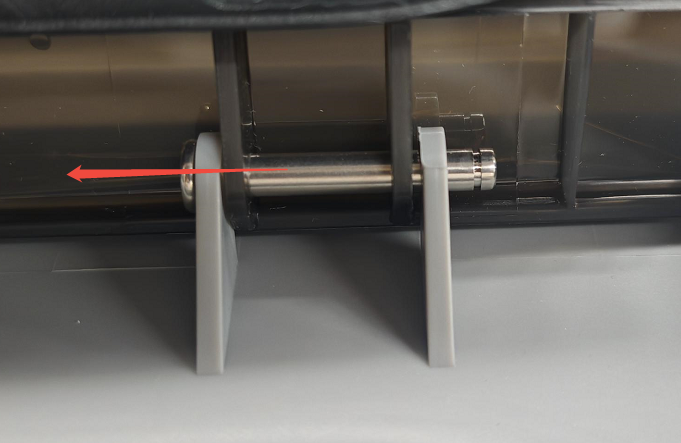

1. Remove the pins on both sides from the inside to the outside.
2. Close the protective cover and remove.
¶ 3. Installation steps:

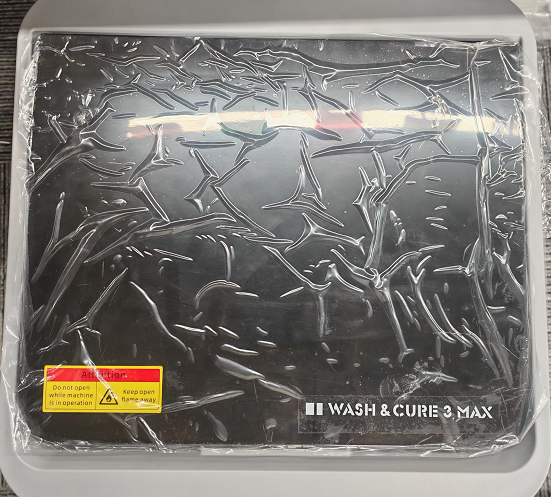

¶ Step 1: Install the protective cover
1. Close the protective cover and lift it up.
¶ Step 2: Install the pins

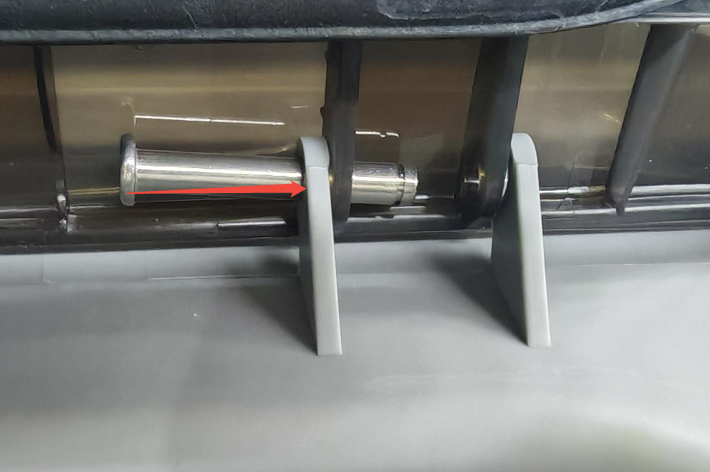

1. Insert the pins from the inside to the outside on both sides.
2.Align the buckle with the pin slot and insert it tightly.
