¶ Tips:
1. Please turn off the power switch and unplug the power plug.
2. Drain the liquid in the bucket before checking.
3. Replug the water pipe, and a small amount of liquid may flow out of the water pipe.
¶ 1. Tools:
S2.0 Allen key
S2.5 Allen key
S3.0 Allen key
¶ 2.Troubleshooting Guide:
¶ (1) Troubleshooting for external water pipe leakage

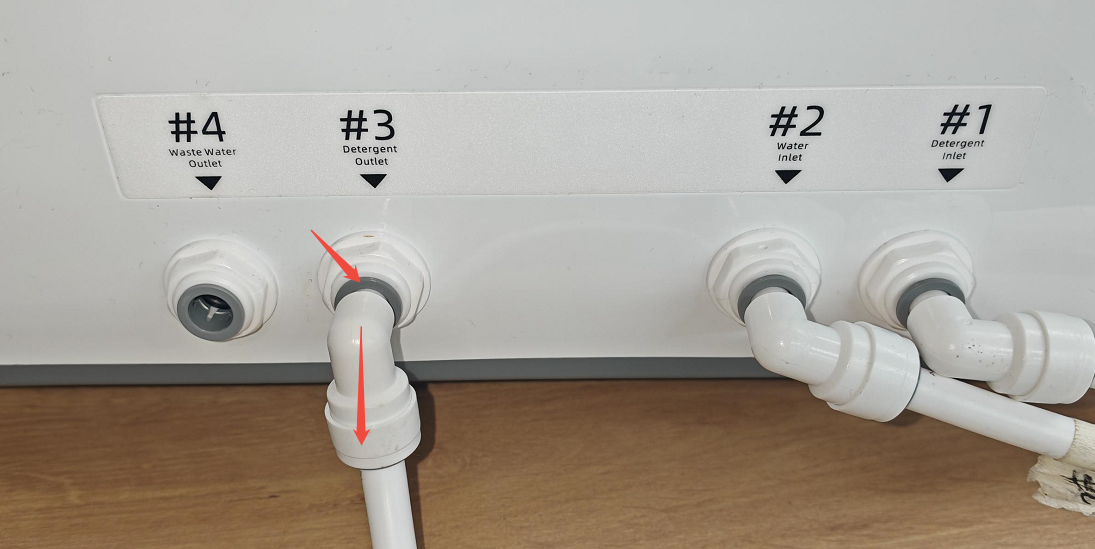

1. Go to the back of the machine and recheck the external water pipe. Press the gray buckle and pull out the water pipe. (Note: When reinstalling the water pipe, it needs to be inserted to the bottom. If the water pipe is not inserted to the bottom, there may be a risk of leakage.)
¶ (2) Check for water leakage inside the machine
¶ Step 1: Remove the bottom cover

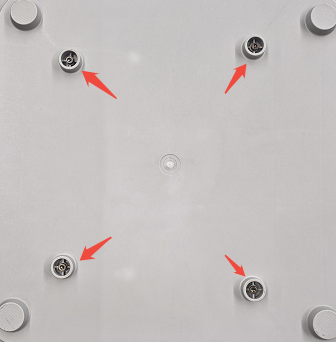

1. Lay the machine on its side and use an S2.5 Allen key to unscrew the bottom cover fixing screws.

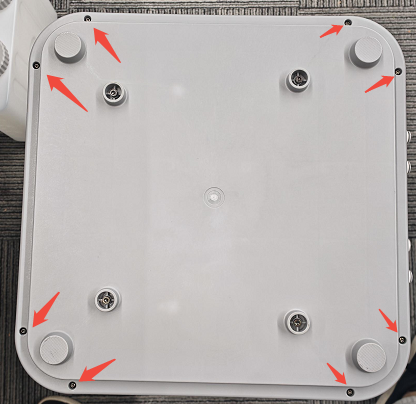

2.Use an S4.0 Allen key to unscrew the bottom cover fixing screws and remove the bottom cover.

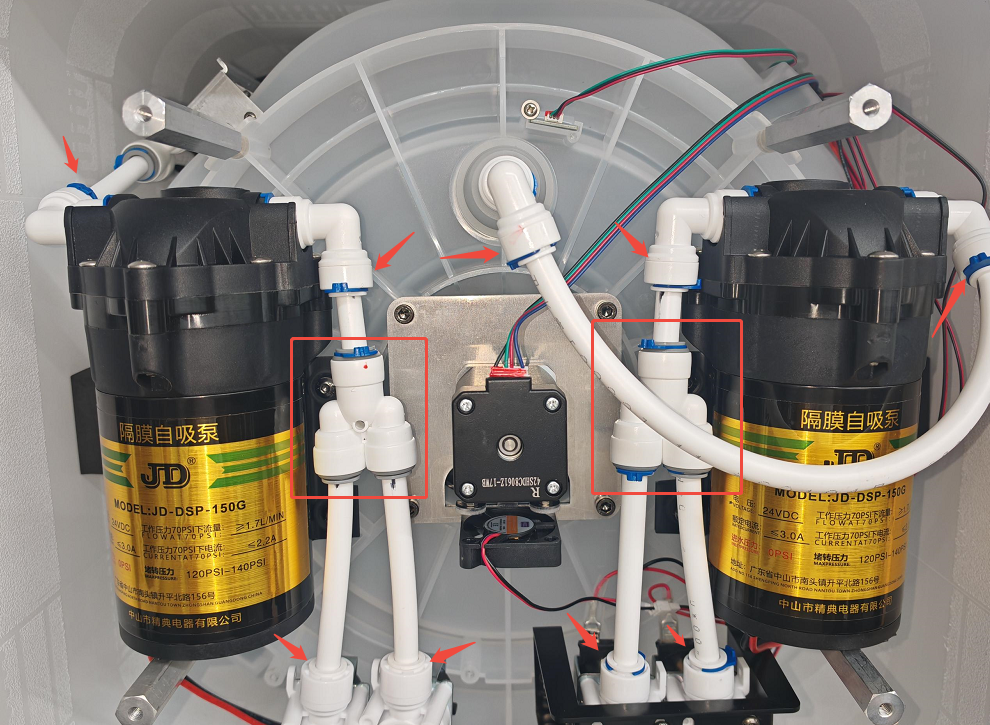

¶ Step 2: Check all the interfaces for leaks
If there is a leak, you can re-plug the water pipe.
(The leaking area needs to be wiped clean)

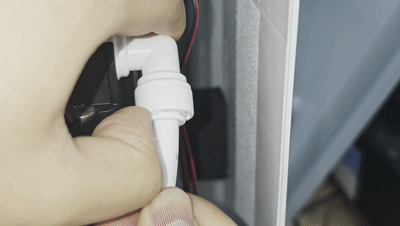

(Note: The water pipe needs to be inserted to the bottom. If the water pipe is not inserted to the bottom, there may be a risk of leakage)
While pressing the gray clamp ring, pull the water pipe downwards and remove the DC diaphragm pump assembly.
(Note: When removing the water pipe, liquid may flow out of the pipe)
¶ Step 3: Install the bottom cover
1. After the inspection is completed, use an S2.5 Allen key to tighten the bottom cover fixing screws.
2.Use an S4.0 Allen key to tighten the bottom cover fixing screws.
¶ Step 4: Replace parts
If re-plugging the water pipe does not solve the leak or the parts are damaged, you need to replace the parts.
